hi-riser changing bench
£3,649.00 – £5,909.00
Description

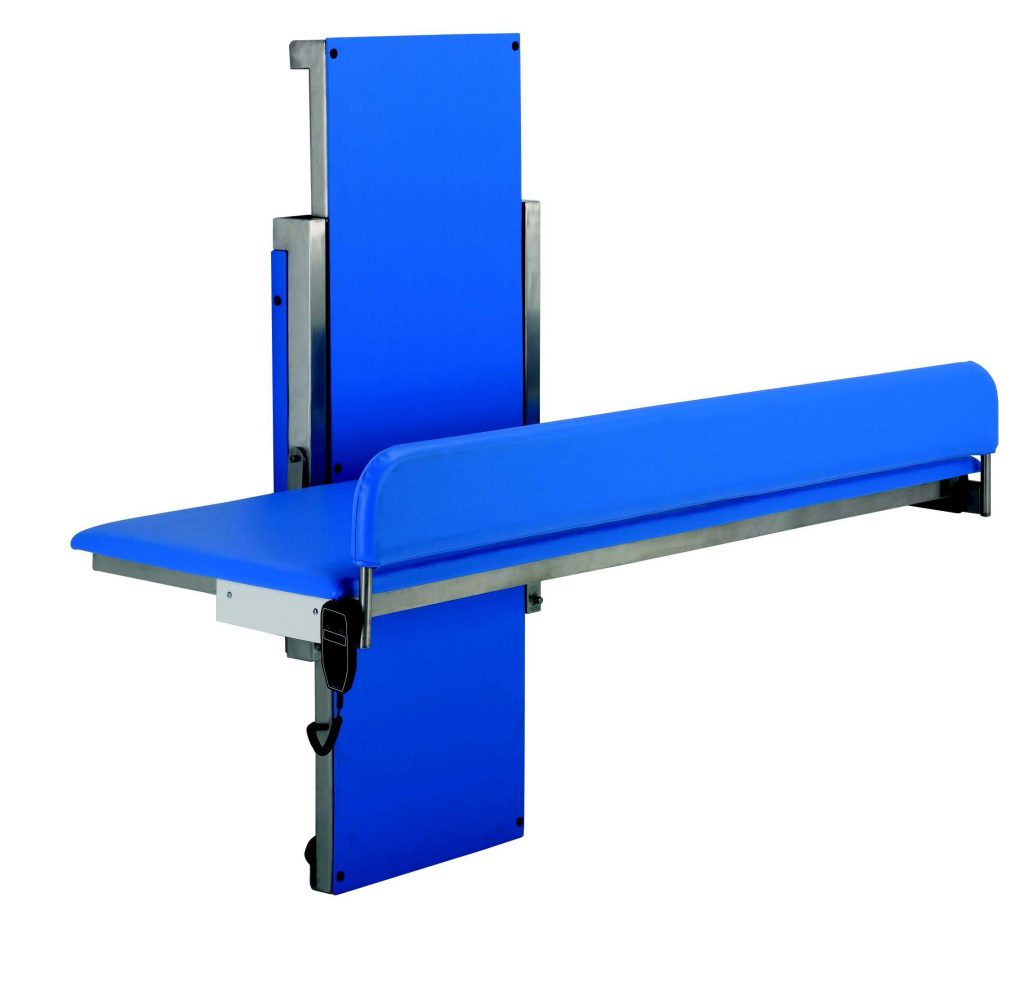

Hi-Riser is an electrically operated wall-mounted changing table that is suitable for children and adults of up to 200kg. Despite its robust structure, the Hi-Riser has a slimline design that ensures it fits easily into most environments.

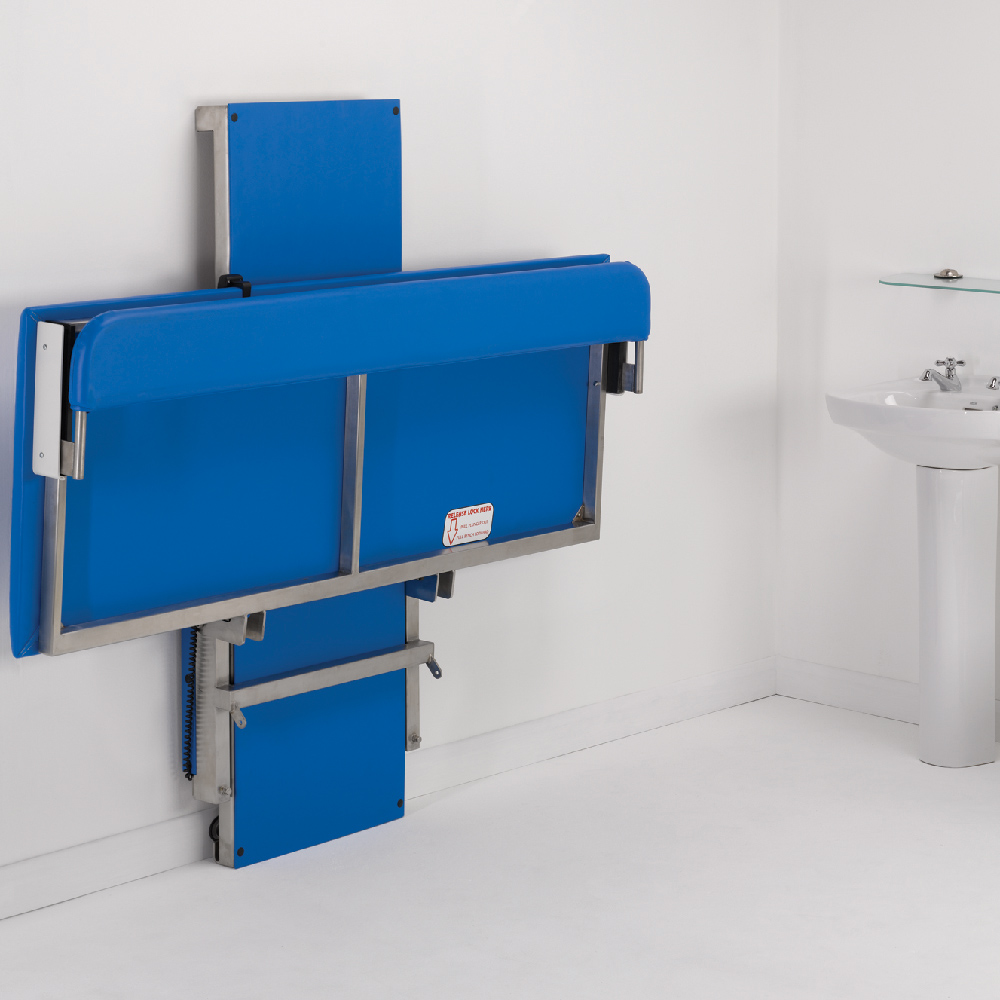

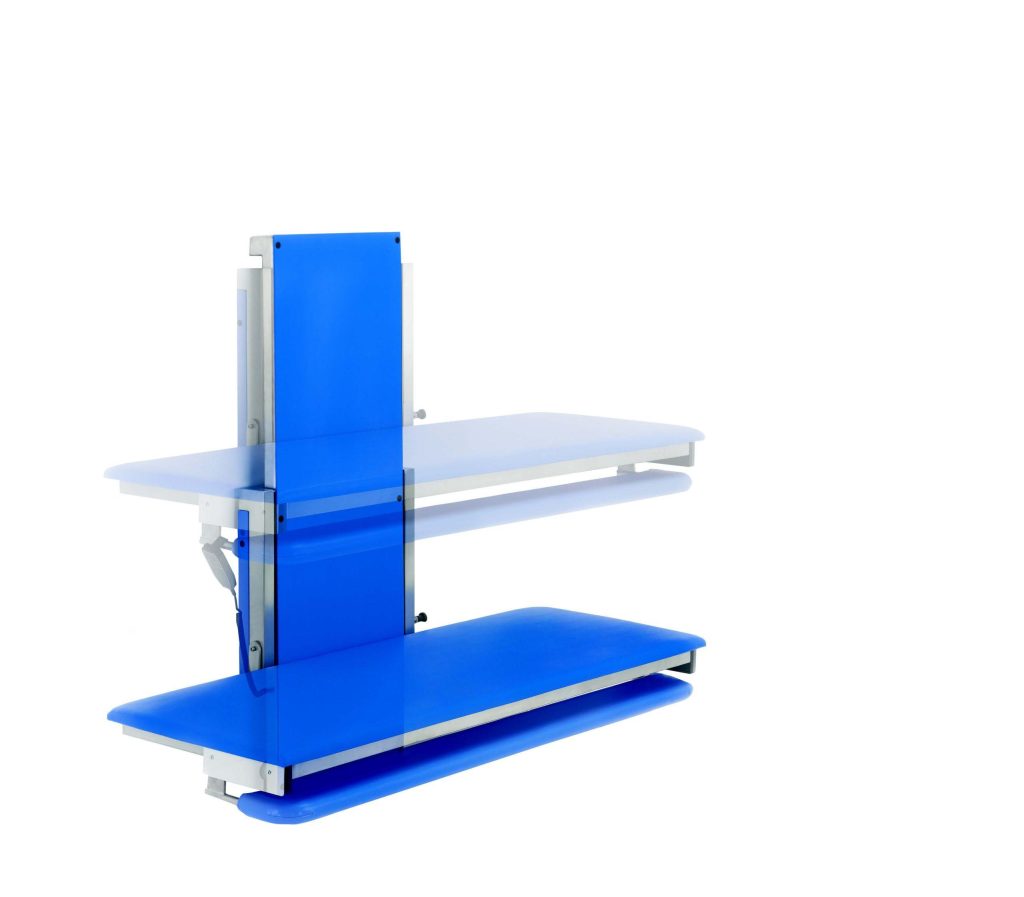

The Hi-Riser has been designed so that it can be used with most mobile or ceiling hoists. The unique safety side rail stows away, streamlining access for transfers from a wheelchair, shower and toileting chair. The Hi-Riser also benefits from an impressive height travel range of 400-1000mm.
We understand that every need is different, which is why the Hi-Riser comes in seven different sizes that cater from young children through to adults. The Hi-Riser comes in a cream powder coated frame for dry environments or stainless steel frame for damp environments.
*We are able to provide a free assessment if required and also offer a chargeable installation service. Smirthwaite Limited will not be held responsible for any damage to the product or property for installations carried out by a third party. If fitting to stud walls please purchase the backing board in addition. Products are not eligible for a free 28 day return if they’ve been used or installed.
Additional information
Additional information
Levitex | Included, Not Included |
---|
User Guides
Size Guide
Measurement | Size 1 | Size 2 | Size 3 | Size 4 | Size 5 | Size 6 | Size 7 | Size 8 | Size 9 |
---|---|---|---|---|---|---|---|---|---|
Code for mild steel powder coated | 3041 | 3042 | 3043 | 3044 | 3045 | 3046 | 3047 | 3048 | 3049 |
Code for stainless steel | 3051 | 3052 | 3053 | 3054 | 3055 | 3056 | 3057 | 3058 | 3059 |
Table dimension length (mm) | 1200 | 1300 | 1400 | 1500 | 1600 | 1700 | 1800 | 2000 | 2100 |
Table dimension width (mm) | 550 | 550 | 600 | 600 | 650 | 650 | 650 | 650 | 650 |
Table dimension with with safety guard (mm) | 875 | 875 | 925 | 925 | 975 | 975 | 975 | 975 | 975 |
Travel range (mm) | 400-1000 | 400-1000 | 400-1000 | 400-1000 | 400-1000 | 400-1000 | 400-1000 | 400-1000 | 400-1000 |
Wall frame width (mm) | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 | 700 |
Wall frame depth (mm) | 110 | 110 | 110 | 110 | 110 | 110 | 110 | 110 | 110 |
Wall frame height (mm) | 1550 | 1550 | 1550 | 1550 | 1550 | 1550 | 1550 | 1550 | 1550 |
Safety guard height (mm) | 165 | 165 | 165 | 165 | 165 | 165 | 165 | 165 | 165 |
Stored width (mm) | 305 | 305 | 305 | 305 | 305 | 305 | 305 | 305 | 305 |
Max user weight (kg) | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 200 |
Product weight (kg) | 80 | 82 | 84 | 86 | 88 | 90 | 92 | 94 | 96 |
Colour Ranges
Deluxe Range
The Deluxe range can be used on most products
-
Purple
-
Red
-
Blue
-
Teal
-
Grey
-
Black
Just Colour range - vinyl
Just Colour range can be used on most products
-
Ocean Blue
-
Rouge
-
Gingersnap
-
Marigold
-
Eden
-
Cobalt (Black)
-
Candy Pink
-
Cool Blue
-
Cherry Blossom
-
Lilac
-
Sea Green
-
Citrus Green
-
Greyfriar
-
Jasmine White
Colours are a guide only and may vary due to limitations of the print process.
Material samples are available upon request. Colour range may change without prior notice, we try to colour match where possible.
